使用小程序内置组件
1、用法
需要明确的是，如果没有特殊需求的话，请尽量使用 html 标签来编写代码，使用内置组件时请按需使用。这是因为绝大部分内置组件外层都会被包裹一层自定义组件，如果自定义组件的实例数量达到一定量级的话，理论上是会对性能造成一定程度的影响，所以对于 view、text、image 等会被频繁使用的内置组件，如果没有特殊需求的话请直接使用 div、span、img 等 html 标签替代。
部分内置组件可以直接使用 html 标签替代，比如 input 组件可以使用 input 标签替代。目前已支持的可替代组件列表：
<input /> --> input 组件
<input type="radio" /> --> radio 组件
<input type="checkbox" /> --> checkbox 组件
<label><label> --> label 组件
<textarea></textarea> --> textarea 组件
<img /> --> image 组件
<video></video> --> video 组件
<canvas></canvas> --> canvas 组件
还有一部分内置组件在 html 中没有标签可替代，那就需要使用 wx-component 标签或者使用 wx- 前缀，基本用法如下：
<!-- wx-component 标签用法 -->
<wx-component behavior="picker" mode="region" @change="onChange">选择城市</wx-component>
<wx-component behavior="button" open-type="share" @click="onClickShare">分享</wx-component>
<!-- wx- 前缀用法 -->
<wx-picker mode="region" @change="onChange">选择城市</wx-picker>
<wx-button open-type="share" @click="onClickShare">分享</wx-button>
如果使用 wx-component 标签表示要渲染小程序内置组件，然后 behavior 字段表示要渲染的组件名；其他组件属性传入和官方文档一致，事件则采用 vue 的绑定方式。
wx-component 或 wx- 前缀已支持内置组件列表：
- cover-image 组件
- cover-view 组件
- movable-area 组件
- movable-view 组件
- scroll-view 组件
- swiper 组件
- swiper-item 组件
- view 组件
- icon 组件
- progress 组件
- text 组件
- button 组件
- editor 组件
- form 组件
- picker 组件
- picker-view 组件
- picker-view-column 组件
- slider 组件
- switch 组件
- navigator 组件
- camera 组件
- image 组件
- live-player 组件
- live-pusher 组件
- map 组件
- ad 组件
- official-account 组件
- open-data 组件
- web-view 组件
内置组件的子组件会被包裹在一层自定义组件里面，因此内置组件和子组件之间会隔着一层容器，该容器会追加 h5-virtual 到 class 上（除了 view、cover-view、text、scroll-view 和 picker-view 组件外，因为这些组件需要保留子组件的结构，所以沿用 0.x 版本的渲染方式）。
0.x 版本：在 0.x 版本中，绝大部分内置组件在渲染时会在外面多包装一层自定义组件，可以近似认为内置组件和其父级节点中间会多一层 div 容器，所以会对部分样式有影响。这个 div 容器会追加一个名为 h5-xxx 的 class，例如使用 video 组件，那么会在这个 div 容器上追加一个名为 h5-video 的 class，以便对其做特殊处理。另外如果是用 wx-component 或是 wx- 前缀渲染的内置组件，会在容器追加的 class 是 h5-wx-component，为了更方便进行识别，这种情况会再在容器额外追加 wx-xxx 的 class。
生成的结构大致如下：
<!-- 源码 -->
<div>
<canvas>
<div></div>
<div></div>
</canvas>
<wx-map>
<div></div>
<div></div>
</wx-map>
<wx-scroll-view>
<div></div>
<div></div>
</wx-scroll-view>
</div>
<!-- 1.x 版本生成的结构 -->
<view>
<canvas class="h5-canvas wx-canvas wx-comp-canvas">
<element class="h5-virtual">
<cover-view></cover-view>
<cover-view></cover-view>
</element>
</canvas>
<map class="h5-wx-component wx-map wx-comp-map">
<element class="h5-virtual">
<cover-view></cover-view>
<cover-view></cover-view>
</element>
</map>
<element class="h5-wx-component wx-scroll-view">
<scroll-view class="wx-comp-scroll-view">
<view></view>
<view></view>
</scroll-view>
</element>
</view>
<!-- 0.x 版本本生成的结构 -->
<view>
<element class="h5-canvas">
<canvas class="wx-comp-canvas">
<cover-view></cover-view>
<cover-view></cover-view>
</canvas>
</element>
<element class="h5-wx-component wx-map">
<map class="wx-comp-map">
<cover-view></cover-view>
<cover-view></cover-view>
</map>
</element>
<element class="h5-wx-component wx-scroll-view">
<scroll-view class="wx-comp-scroll-view">
<view></view>
<view></view>
</scroll-view>
</element>
</view>
PS：button 标签不会被渲染成 button 内置组件，同理 form 标签也不会被渲染成 form 内置组件，如若需要请按照上述原生组件使用说明使用。
PS：因为自定义组件的限制，movable-area/movable-view、swiper/swiper-item、picker-view/picker-view-column 这三组组件必须作为父子存在才能使用，比如 swiper 组件和 swiper-item 必须作为父子组件才能使用，如：
<wx-swiper>
<wx-swiper-item>A</wx-swiper-item>
<wx-swiper-item>B</wx-swiper-item>
<wx-swiper-item>C</wx-swiper-item>
</wx-swiper>
PS：默认 canvas 内置组件的 touch 事件为通用事件的 Touch 对象，而不是 CanvasTouch 对象，如果需要用到 CanvasTouch 对象的话可以改成监听 canvastouchstart、canvastouchmove、canvastouchend 和 canvastouchcancel 事件。
PS：原生组件的表现在小程序中表现会和 web 端标签有些不一样，具体可参考原生组件说明文档。
PS：原生组件下的子节点，div、span 等标签会被渲染成 cover-view，img 会被渲染成 cover-image，如若需要使用 button 内置组件请使用 wx-component 或 wx- 前缀。
PS：如果将插件配置 runtime.wxComponent 的值配置为 noprefix，则可以用不带前缀的方式使用内置组件。
PS：某些 Web 框架（如 react）会强行将节点属性值转成字符串类型。对于普通类型数组（如 wx-picker 组件的 value 属性），字符串化会变成,连接，kbone 会自动做解析，开发者无需处理；对于对象数组（如 wx-picker 组件的 range 属性），如遇到被自动转成字符串的情况，开发者需要将此对象数组转成 json 串传入。
2、案例
在 kbone-advanced 目录下创建 03-native-components 目录。本案例在这个目录下实现。
2.1 创建 package.json
cd 03-native-components
npm init -y
编辑 package.json：
{
"scripts": {
"mp": "cross-env NODE_ENV=production webpack --config build/webpack.mp.config.js --progress --hide-modules"
},
"dependencies": {
"vue": "^2.5.11"
},
"browserslist": [
"> 1%",
"last 2 versions",
"not ie <= 8"
],
"devDependencies": {
"babel-core": "^6.26.0",
"babel-loader": "^7.1.2",
"babel-preset-env": "^1.6.0",
"babel-preset-stage-3": "^6.24.1",
"cross-env": "^5.0.5",
"css-loader": "^0.28.7",
"extract-text-webpack-plugin": "^3.0.2",
"file-loader": "^1.1.4",
"html-webpack-plugin": "^4.0.0-beta.5",
"mini-css-extract-plugin": "^0.5.0",
"optimize-css-assets-webpack-plugin": "^5.0.1",
"stylehacks": "^4.0.3",
"vue-loader": "^15.7.0",
"vue-template-compiler": "^2.6.10",
"webpack": "^4.29.6",
"webpack-cli": "^3.2.3",
"mp-webpack-plugin": "latest"
}
}
安装依赖包：
npm install
2.2 配置 webpack
在 03-native-components 目录下创建 build 文件夹，在文件夹下创建 webpack.mp.config.js 文件，内容如下：
const path = require('path')
const webpack = require('webpack')
const MiniCssExtractPlugin = require('mini-css-extract-plugin')
const { VueLoaderPlugin } = require('vue-loader')
const OptimizeCSSAssetsPlugin = require('optimize-css-assets-webpack-plugin');
const TerserPlugin = require('terser-webpack-plugin')
const MpPlugin = require('mp-webpack-plugin') // 用于构建小程序代码的 webpack 插件
const isOptimize = false // 是否压缩业务代码，开发者工具可能无法完美支持业务代码使用到的 es 特性，建议自己做代码压缩
module.exports = {
mode: 'production',
entry: {
index: path.resolve(__dirname, '../src/index/main.mp.js'),
},
output: {
path: path.resolve(__dirname, '../dist/mp/common'), // 放到小程序代码目录中的 common 目录下
filename: '[name].js', // 必需字段，不能修改
library: 'createApp', // 必需字段，不能修改
libraryExport: 'default', // 必需字段，不能修改
libraryTarget: 'window', // 必需字段，不能修改
},
target: 'web', // 必需字段，不能修改
optimization: {
runtimeChunk: false, // 必需字段，不能修改
splitChunks: { // 代码分隔配置，不建议修改
chunks: 'all',
minSize: 1000,
maxSize: 0,
minChunks: 1,
maxAsyncRequests: 100,
maxInitialRequests: 100,
automaticNameDelimiter: '~',
name: true,
cacheGroups: {
vendors: {
test: /[\\/]node_modules[\\/]/,
priority: -10
},
default: {
minChunks: 2,
priority: -20,
reuseExistingChunk: true
}
}
},
minimizer: isOptimize ? [
// 压缩CSS
new OptimizeCSSAssetsPlugin({
assetNameRegExp: /\.(css|wxss)$/g,
cssProcessor: require('cssnano'),
cssProcessorPluginOptions: {
preset: ['default', {
discardComments: {
removeAll: true,
},
minifySelectors: false, // 因为 wxss 编译器不支持 .some>:first-child 这样格式的代码，所以暂时禁掉这个
}],
},
canPrint: false
}),
// 压缩 js
new TerserPlugin({
test: /\.js(\?.*)?$/i,
parallel: true,
})
] : [],
},
module: {
rules: [
{
test: /\.css$/,
use: [
MiniCssExtractPlugin.loader,
'css-loader'
],
},
{
test: /\.vue$/,
loader: 'vue-loader',
},
{
test: /\.js$/,
use: [
'babel-loader'
],
exclude: /node_modules/
},
{
test: /\.(png|jpg|gif|svg)$/,
loader: 'file-loader',
options: {
name: '[name].[ext]?[hash]'
}
}
]
},
resolve: {
extensions: ['*', '.js', '.vue', '.json']
},
plugins: [
new webpack.DefinePlugin({
'process.env.isMiniprogram': process.env.isMiniprogram, // 注入环境变量，用于业务代码判断
}),
new MiniCssExtractPlugin({
filename: '[name].wxss',
}),
new VueLoaderPlugin(),
new MpPlugin(require('./miniprogram.config.js')),
],
}
在 03-native-components 文件夹下创建 miniprogram.config.js 文件，内容如下：
module.exports = {
origin: 'https://test.miniprogram.com',
entry: '/',
router: {
index: [
'/',
],
},
redirect: {
notFound: 'index',
accessDenied: 'index',
},
generate: {
appWxss: 'none',
// 构建完成后是否自动安装小程序依赖。'npm'：使用 npm 自动安装依赖
autoBuildNpm: 'npm'
},
runtime: {
// wxComponent: 'noprefix',
wxComponent: 'default'
},
app: {
navigationBarTitleText: 'miniprogram-project',
},
projectConfig: {
appid: '',
projectname: 'native-components',
},
packageConfig: {
author: 'Felixlu',
},
}
2.3 创建 index.html
在 03-native-components 目录下创建 index.html 文件，内容如下：
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1.0, minimum-scale=1.0, user-scalable=no,minimal-ui, viewport-fit=cover" />
<meta content="yes"name="apple-mobile-web-app-capable"/>
<meta content="black"name="apple-mobile-web-app-status-bar-style"/>
<meta name="format-detection"content="telephone=no, email=no" />
<title>vue</title>
<style type="text/css">
#app {
font-family: 'Avenir', Helvetica, Arial, sans-serif;
-webkit-font-smoothing: antialiased;
-moz-osx-font-smoothing: grayscale;
text-align: center;
color: #2c3e50;
margin-top: 60px;
}
</style>
</head>
<body>
<div id="app"></div>
</body>
</html>
2.4 创建小程序入口文件
在 03-native-components/src/index 目录下创建 main.mp.js 小程序入口文件，内容如下：
import Vue from 'vue'
import App from './App.vue'
export default function createApp() {
const container = document.createElement('div')
container.id = 'app'
document.body.appendChild(container)
return new Vue({
el: '#app',
render: h => h(App)
})
}
2.4 编写系列组件
2.4.1 App.vue
在 src/index 下创建 App.vue 文件，内容如下：
<template>
<div>
<ul class="tab">
<li class="tab-item" :class="{selected: wxPrefix === 0}" @click="wxPrefix = 0">wx-component 用法</li>
<li class="tab-item" :class="{selected: wxPrefix === 1}" @click="wxPrefix = 1">wx- 前缀用法</li>
<!-- <li class="tab-item" :class="{selected: wxPrefix === 2}" @click="wxPrefix = 2">无前缀用法</li> -->
</ul>
<Comp :wxPrefix="wxPrefix" />
</div>
</template>
<script>
import Comp from './Component.vue'
export default {
name: 'App',
components: {
Comp,
},
data() {
return {
wxPrefix: 1, // 0 - wx-component 用法，1 - wx- 前缀用法，2 - 无前缀用法(需要配置 runtime.wxComponent 字段)
}
},
}
</script>
<style>
.tab {
padding: 10px;
}
.tab-item {
display: inline-block;
margin-bottom: 10px;
font-size: 18px;
padding: 5px 10px;
border-radius: 5px;
}
.tab-item.selected {
background: #3eaf7c;
color: #fff;
}
</style>
2.4.2 Component.vue
在 src/index 下创建 Component.vue 文件，内容如下：
<template>
<!-- className 属性用来测试 -->
<div className="cnt2">
<div class="group" v-for="item in list" :key="item">
<div class="label">{{item}}</div>
<wx-view class="comp">
<div v-if="item === 'normal'">
<div>
<div class="inline">hello </div>
<div class="inline">world!</div>
</div>
<div>
<a class="margin-left-10 block" href="javascript: void(0)">fake jump</a>
</div>
</div>
<div v-if="item === 'event'">
<div @click="onRootClick">
<wx-capture @touchstart="onParentTouchStart" @touchend="onParentTouchEnd" @click="onParentClick">
<button @click="onClick">capture-inner({{eventCount}})</button>
</wx-capture>
<wx-catch @touchstart="onParentTouchStart" @touchend="onParentTouchEnd" @click="onParentClick">
<button @click="onClick">catch-inner1({{eventCount}})</button>
</wx-catch>
<wx-catch @click="onParentClick">
<button @click="onClick">catch-inner2({{eventCount}})</button>
</wx-catch>
<div class="event-cnt">
<wx-animation :class="['event-t', transition ? 'event-t-s' : 'event-t-e']" @transitionend="onTransitionEnd"></wx-animation>
<button @click="startTranstion">transition</button>
</div>
<div class="event-cnt">
<wx-animation class="event-a" @animationstart="onAnimationStart" @animationiteration="onAnimationIteration" @animationend="onAnimationEnd"></wx-animation>
</div>
</div>
</div>
<!-- 可使用 html 标签替代的内置组件 -->
<div v-else-if="item === 'img'">
<img src="https://res.wx.qq.com/wxdoc/dist/assets/img/0.4cb08bb4.jpg" width="50" height="50" @load="onImgLoad" />
<img src="https://res.wx.qq.com/wxdoc/dist/assets/img/0.4cb08bb4.jpg" mode="top" width="50" height="50" @load="onImgLoad" />
</div>
<div v-else-if="item === 'input'">
<input type="text" placeholder="请输入文本内容" @input="onInput" v-model="input.inputText" @change="onInputChange" />
<input type="number" placeholder="请输入数字内容" @input="onInput" v-model="input.inputNumber" data-is-number="yes" />
<input type="radio" />
<input type="radio" name="radio" value="radio1" @input="onInput" v-model="input.inputRadio" />
<input type="radio" name="radio" value="radio2" @input="onInput" v-model="input.inputRadio" />
<input type="checkbox" @input="onInput" v-model="input.inputCheckbox" />
<input type="hidden" value="I am Hidden" />
</div>
<textarea v-else-if="item === 'textarea'" class="textarea-node" style="height: 30px;" placeholder="请输入内容" maxlength="50" :auto-height="true" adjust-position="" value="我是 textarea" @input="onTextareaInput" />
<div v-else-if="item === 'label'">
<!-- input -->
<label>
<div>输入框1</div>
<input placeholder="输入框1" @change="onLabelChange"/>
</label>
<label for="input2">
<div>输入框2</div>
</label>
<input id="input2" placeholder="输入框2" @change="onLabelChange"/>
<!-- radio -->
<label>
<div>radio1</div>
<input name="label-radio" type="radio" checked="checked" @change="onLabelChange"/>
</label>
<label for="input3">
<div>radio2</div>
</label>
<input name="label-radio" type="radio" id="input3" @change="onLabelChange"/>
<!-- checkbox -->
<label>
<div>checkbox1</div>
<input type="checkbox" @change="onLabelChange"/>
</label>
<label for="input4">
<div>checkbox2</div>
</label>
<input type="checkbox" id="input4" @change="onLabelChange"/>
<!-- switch -->
<label>
<div>switch1</div>
<template>
<wx-component v-if="!wxPrefix" behavior="switch" @change="onLabelChange"></wx-component>
<wx-switch v-else class="switch-node" @change="onLabelChange"></wx-switch>
</template>
</label>
<label for="switch2">
<div>switch2</div>
</label>
<template>
<wx-component v-if="!wxPrefix" behavior="switch" id="switch2" @change="onLabelChange"></wx-component>
<wx-switch v-else id="switch2" @change="onLabelChange"></wx-switch>
</template>
</div>
<video v-else-if="item === 'video'" class="video" src="http://wxsnsdy.tc.qq.com/105/20210/snsdyvideodownload?filekey=30280201010421301f0201690402534804102ca905ce620b1241b726bc41dcff44e00204012882540400&bizid=1023&hy=SH&fileparam=302c020101042530230204136ffd93020457e3c4ff02024ef202031e8d7f02030f42400204045a320a0201000400" :muted="true" :show-mute-btn="true" :controls="true">
<Inner></Inner>
</video>
<canvas v-else-if="item === 'canvas'" class="canvas" ref="canvas" type="2d" width="300" height="200">
<Inner style="margin-top: 100px;"></Inner>
</canvas>
<!-- 使用 wx-component 来创建内置组件 -->
<template v-else-if="item === 'view'">
<wx-component v-if="!wxPrefix" :behavior="item">我是视图</wx-component>
<wx-view v-else-if="wxPrefix === 1">我是视图</wx-view>
<view v-else-if="wxPrefix === 2">我是视图</view>
<wx-component v-if="!wxPrefix" :behavior="item" :hidden="true">我是 hidden 视图</wx-component>
<wx-view v-else-if="wxPrefix === 1" :hidden="true">我是 hidden 视图</wx-view>
<view v-else-if="wxPrefix === 2" :hidden="true">我是 hidden 视图</view>
</template>
<template v-else-if="item === 'text'">
<wx-component v-if="!wxPrefix" :behavior="item" :selectable="true">{{'this is first line\nthis is second line'}}</wx-component>
<wx-text v-else-if="wxPrefix === 1" :selectable="true">{{'this is first line\nthis is second line'}}</wx-text>
<text v-else-if="wxPrefix === 2" :selectable="true">{{'this is first line\nthis is second line'}}</text>
</template>
<template v-else-if="item === 'rich-text'">
<wx-component v-if="!wxPrefix" :behavior="item" :nodes="richText.nodes"></wx-component>
<wx-rich-text v-else-if="wxPrefix === 1" :nodes="richText.nodes"></wx-rich-text>
<rich-text v-else-if="wxPrefix === 2" :nodes="richText.nodes"></rich-text>
</template>
<template v-else-if="item === 'swiper'">
<wx-component v-if="!wxPrefix" :behavior="item" :class="item" :indicator-dots="swiper.indicatorDots" :autoplay="swiper.autoplay" :interval="5000" :duration="500" @change="onSwiperChange">
<wx-component behavior="swiper-item" class="swiper-item-1" item-id="1"><span>A</span></wx-component>
<wx-component behavior="swiper-item" class="swiper-item-2" item-id="2"><span>B</span></wx-component>
<wx-component behavior="swiper-item" class="swiper-item-3" item-id="3"><span>C</span></wx-component>
<div>不会被渲染</div>
</wx-component>
<wx-swiper v-else-if="wxPrefix === 1" :class="item" :indicator-dots="swiper.indicatorDots" :autoplay="swiper.autoplay" :interval="5000" :duration="500" @change="onSwiperChange">
<wx-swiper-item class="swiper-item-1" item-id="1"><span>A</span></wx-swiper-item>
<wx-swiper-item class="swiper-item-2" item-id="2"><span>B</span></wx-swiper-item>
<wx-swiper-item class="swiper-item-3" item-id="3"><span>C</span></wx-swiper-item>
<div>不会被渲染</div>
</wx-swiper>
<swiper v-else-if="wxPrefix === 2" :class="item" :indicator-dots="swiper.indicatorDots" :autoplay="swiper.autoplay" :interval="5000" :duration="500" @change="onSwiperChange">
<swiper-item class="swiper-item-1" item-id="1"><span>A</span></swiper-item>
<swiper-item class="swiper-item-2" item-id="2"><span>B</span></swiper-item>
<swiper-item class="swiper-item-3" item-id="3"><span>C</span></swiper-item>
<div>不会被渲染</div>
</swiper>
<div>
<wx-switch name="switch-a" :checked="swiper.indicatorDots" @change="swiper.indicatorDots = !swiper.indicatorDots" /> 指示点
</div>
<div>
<wx-switch name="switch-a" :checked="swiper.autoplay" @change="swiper.autoplay = !swiper.autoplay" /> 自动播放
</div>
</template>
<template v-else-if="item === 'movable'">
<wx-component v-if="!wxPrefix" :behavior="item" :class="item" :scale-area="true">
<wx-component ref="movable-view" class="movable-view" behavior="movable-view" direction="all" :inertia="true" :out-of-bounds="true" :x="movable.x" :y="movable.y" :scale-value="movable.scaleValue" :scale="true" @change="onMovableChange" @scale="onMovableScale"><span>text</span></wx-component>
<wx-component class="movable-view" behavior="movable-view" direction="all" :x="0" :y="0">plaintext</wx-component>
</wx-component>
<wx-movable-area v-else-if="wxPrefix === 1" :class="item" :scale-area="true">
<wx-movable-view ref="movable-view" class="movable-view" direction="all" :inertia="true" :out-of-bounds="true" :x="movable.x" :y="movable.y" :scale-value="movable.scaleValue" :scale="true" @change="onMovableChange" @scale="onMovableScale"><span>text</span></wx-movable-view>
<wx-movable-view class="movable-view" direction="all" :x="0" :y="0">plaintext</wx-movable-view>
</wx-movable-area>
<movable-area v-else-if="wxPrefix === 2" :class="item" :scale-area="true">
<movable-view ref="movable-view" class="movable-view" direction="all" :inertia="true" :out-of-bounds="true" :x="movable.x" :y="movable.y" :scale-value="movable.scaleValue" :scale="true" @change="onMovableChange" @scale="onMovableScale"><span>text</span></movable-view>
<movable-view class="movable-view" direction="all" :x="0" :y="0">plaintext</movable-view>
</movable-area>
<wx-button @click="onClickMovableMove">move to (30px, 30px)</wx-button>
<wx-button @click="onClickMovableScale">scale to 3.0</wx-button>
</template>
<template v-else-if="item === 'form'">
<!-- form 组件 -->
<wx-form :report-submit="true" @submit="onFormSubmit" @reset="onFormReset">
<div>
<div>form 组件</div>
<input type="text" name="text-a" value="text value" />
<input type="text" value="text value2" />
<input type="number" name="number-a" value="123" />
<textarea name="textare-a" value="textare value" />
<wx-switch name="switch-a" :checked="true" />
<wx-slider name="slider-a" min="50" max="200" :show-value="true" />
<wx-picker name="picker-a" :value="1" :range="['美国', '中国', '巴西', '日本']">点击 选择国家</wx-picker>
<div class="ipt-group"><input type="radio" name="radio-a" value="radio1" :checked="true" />radio1</div>
<div class="ipt-group"><input type="radio" name="radio-a" value="radio2" />radio2</div>
<div class="ipt-group"><input type="checkbox" name="checkbox-a" value="checkbox1" :checked="true" />checkbox1</div>
<div class="ipt-group"><input type="checkbox" name="checkbox-a" value="checkbox2" :checked="true" />checkbox2</div>
<div class="ipt-group"><input type="checkbox" name="checkbox-a" value="checkbox3" />checkbox3</div>
<input type="hidden" name="hidden-a" value="hidden value" />
<button type="submit">submit（普通标签）</button>
<button type="reset">reset（普通标签）</button>
<button>什么也不做（普通标签）</button>
<wx-button form-type="submit">submit（内置组件）</wx-button>
<wx-button form-type="reset">reset（内置组件）</wx-button>
<wx-button>什么也不做（内置组件）</wx-button>
</div>
</wx-form>
<!-- form 标签 -->
<form @submit="onFormSubmit" @reset="onFormReset">
<div>
<div>form 标签</div>
<input type="text" name="text-b" value="text value" />
<input type="text" value="text value2" />
<input type="number" name="number-b" value="123" />
<textarea name="textare-b" value="textare value" />
<wx-switch name="switch-b" :checked="true" />
<wx-slider name="slider-b" min="50" max="200" :show-value="true" />
<wx-picker name="picker-a" :value="1" :range="['美国', '中国', '巴西', '日本']">点击 选择国家</wx-picker>
<div class="ipt-group"><input type="radio" name="radio-b" value="radio1" :checked="true" />radio1</div>
<div class="ipt-group"><input type="radio" name="radio-b" value="radio2" />radio2</div>
<div class="ipt-group"><input type="checkbox" name="checkbox-b" value="checkbox1" :checked="true" />checkbox1</div>
<div class="ipt-group"><input type="checkbox" name="checkbox-b" value="checkbox2" :checked="true" />checkbox2</div>
<div class="ipt-group"><input type="checkbox" name="checkbox-b" value="checkbox3" />checkbox3</div>
<input type="hidden" name="hidden-b" value="hidden value" />
<button type="submit">submit（普通标签）</button>
<button type="reset">reset（普通标签）</button>
<button>什么也不做（普通标签）</button>
<wx-button form-type="submit">submit（内置组件）</wx-button>
<wx-button form-type="reset">reset（内置组件）</wx-button>
<wx-button>什么也不做（内置组件）</wx-button>
</div>
</form>
</template>
<template v-else-if="item === 'button'">
<!-- className 属性用来测试 -->
<wx-component v-if="!wxPrefix" :behavior="item" className="wx-button-custom" open-type="share">分享</wx-component>
<wx-button v-else-if="wxPrefix === 1" className="wx-button-custom" open-type="share">分享</wx-button>
<button v-else-if="wxPrefix === 2" className="wx-button-custom" open-type="share">分享</button>
<wx-component v-if="!wxPrefix" :behavior="item" open-type="getPhoneNumber" @getphonenumber="onGetPhoneNumber">获取手机号</wx-component>
<wx-button v-else-if="wxPrefix === 1" open-type="getPhoneNumber" @getphonenumber="onGetPhoneNumber">获取手机号</wx-button>
<button v-else-if="wxPrefix === 2" open-type="getPhoneNumber" @getphonenumber="onGetPhoneNumber">获取手机号</button>
<wx-component v-if="!wxPrefix" :behavior="item">
<span>span1</span>
<input type="checkbox"/>
<span>span2</span>
</wx-component>
<wx-button v-else-if="wxPrefix === 1">
<span>span1</span>
<input type="checkbox"/>
<span>span2</span>
</wx-button>
<button v-else-if="wxPrefix === 2">
<span>span1</span>
<input type="checkbox"/>
<span>span2</span>
</button>
</template>
<template v-else-if="item === 'image'">
<wx-component v-if="!wxPrefix" :behavior="item" src="https://res.wx.qq.com/wxdoc/dist/assets/img/0.4cb08bb4.jpg"></wx-component>
<wx-image v-else-if="wxPrefix === 1" src="https://res.wx.qq.com/wxdoc/dist/assets/img/0.4cb08bb4.jpg"></wx-image>
<image v-else-if="wxPrefix === 2" src="https://res.wx.qq.com/wxdoc/dist/assets/img/0.4cb08bb4.jpg"></image>
</template>
<template v-else-if="item === 'icon'">
<div v-if="!wxPrefix">
<div><wx-component :behavior="item" v-for="subItem in icon.size" :key="subItem" type="success" :size="subItem"></wx-component></div>
<div><wx-component :behavior="item" v-for="subItem in icon.color" :key="subItem" type="success" size="40" :color="subItem"></wx-component></div>
<div><wx-component :behavior="item" v-for="subItem in icon.type" :key="subItem" :type="subItem" size="40"></wx-component></div>
</div>
<div v-else-if="wxPrefix === 1">
<div><wx-icon v-for="subItem in icon.size" :key="subItem" type="success" :size="subItem"></wx-icon></div>
<div><wx-icon v-for="subItem in icon.color" :key="subItem" type="success" size="40" :color="subItem"></wx-icon></div>
<div><wx-icon v-for="subItem in icon.type" :key="subItem" :type="subItem" size="40"></wx-icon></div>
</div>
<div v-else-if="wxPrefix === 2">
<div><icon v-for="subItem in icon.size" :key="subItem" type="success" :size="subItem"></icon></div>
<div><icon v-for="subItem in icon.color" :key="subItem" type="success" size="40" :color="subItem"></icon></div>
<div><icon v-for="subItem in icon.type" :key="subItem" :type="subItem" size="40"></icon></div>
</div>
</template>
<template v-else-if="item === 'progress'">
<div v-if="!wxPrefix">
<wx-component :behavior="item" percent="20" :show-info="true"></wx-component>
<wx-component :behavior="item" percent="40" stroke-width="12"></wx-component>
<wx-component :behavior="item" percent="60" color="pink"></wx-component>
<wx-component :behavior="item" percent="80" :active="true"></wx-component>
</div>
<div v-else-if="wxPrefix === 1">
<wx-progress percent="20" :show-info="true"></wx-progress>
<wx-progress percent="40" stroke-width="12"></wx-progress>
<wx-progress percent="60" color="pink"></wx-progress>
<wx-progress percent="80" :active="true"></wx-progress>
</div>
<div v-else-if="wxPrefix === 2">
<progress percent="20" :show-info="true"></progress>
<progress percent="40" stroke-width="12"></progress>
<progress percent="60" color="pink"></progress>
<progress percent="80" :active="true"></progress>
</div>
</template>
<template v-else-if="item === 'navigator'">
<wx-component v-if="!wxPrefix" :behavior="item" target="miniProgram" open-type="exit">退出小程序</wx-component>
<wx-navigator v-else-if="wxPrefix === 1" target="miniProgram" open-type="exit">退出小程序</wx-navigator>
<navigator v-else-if="wxPrefix === 2" target="miniProgram" open-type="exit">退出小程序</navigator>
</template>
<template v-else-if="item === 'open-data'">
<div v-if="!wxPrefix">
<wx-component :behavior="item" type="userNickName"></wx-component>
<wx-component :behavior="item" type="userAvatarUrl"></wx-component>
<wx-component :behavior="item" type="userGender"></wx-component>
<wx-component :behavior="item" type="userGender" lang="zh_CN"></wx-component>
<wx-component :behavior="item" type="userCity"></wx-component>
<wx-component :behavior="item" type="userProvince"></wx-component>
<wx-component :behavior="item" type="userCountry"></wx-component>
<wx-component :behavior="item" type="userLanguage"></wx-component>
</div>
<div v-else-if="wxPrefix === 1">
<wx-open-data type="userNickName"></wx-open-data>
<wx-open-data type="userAvatarUrl"></wx-open-data>
<wx-open-data type="userGender"></wx-open-data>
<wx-open-data type="userGender" lang="zh_CN"></wx-open-data>
<wx-open-data type="userCity"></wx-open-data>
<wx-open-data type="userProvince"></wx-open-data>
<wx-open-data type="userCountry"></wx-open-data>
<wx-open-data type="userLanguage"></wx-open-data>
</div>
<div v-else-if="wxPrefix === 2">
<open-data type="userNickName"></open-data>
<open-data type="userAvatarUrl"></open-data>
<open-data type="userGender"></open-data>
<open-data type="userGender" lang="zh_CN"></open-data>
<open-data type="userCity"></open-data>
<open-data type="userProvince"></open-data>
<open-data type="userCountry"></open-data>
<open-data type="userLanguage"></open-data>
</div>
</template>
<template v-else-if="item === 'picker'">
<div v-if="!wxPrefix">
<wx-component :behavior="item" :value="1" :range="['美国', '中国', '巴西', '日本']">点击 选择国家</wx-component>
<wx-component :behavior="item" mode="region" @change="onPickerChange">
<span>点击 </span>
<span>选择城市</span>
</wx-component>
</div>
<div v-else-if="wxPrefix === 1">
<wx-picker :value="1" :range="['美国', '中国', '巴西', '日本']">点击 选择国家</wx-picker>
<wx-picker mode="region" @change="onPickerChange">
<span>点击 </span>
<span>选择城市</span>
</wx-picker>
</div>
<div v-else-if="wxPrefix === 2">
<picker :value="1" :range="['美国', '中国', '巴西', '日本']">点击 选择国家</picker>
<picker mode="region" @change="onPickerChange">
<span>点击 </span>
<span>选择城市</span>
</picker>
</div>
</template>
<template v-else-if="item === 'picker-view'">
<div>{{pickerView.year}}年{{pickerView.month}}月{{pickerView.day}}日</div>
<div v-if="!wxPrefix">
<wx-component :behavior="item" indicator-style="height: 50px;" style="width: 100%; height: 300px;" :value="pickerView.value" @change="onPickerViewChange">
<wx-component behavior="picker-view-column">
<div v-for="item in pickerView.years" :key="item" style="line-height: 50px">{{item}}年</div>
</wx-component>
<wx-component behavior="picker-view-column">
<div v-for="item in pickerView.months" :key="item" style="line-height: 50px">{{item}}月</div>
</wx-component>
<wx-component behavior="picker-view-column">
<div v-for="item in pickerView.days" :key="item" style="line-height: 50px">{{item}}日</div>
</wx-component>
</wx-component>
</div>
<div v-else-if="wxPrefix === 1">
<wx-picker-view indicator-style="height: 50px;" style="width: 100%; height: 300px;" :value="pickerView.value" @change="onPickerViewChange">
<wx-picker-view-column>
<div v-for="item in pickerView.years" :key="item" style="line-height: 50px">{{item}}年</div>
</wx-picker-view-column>
<wx-picker-view-column>
<div v-for="item in pickerView.months" :key="item" style="line-height: 50px">{{item}}月</div>
</wx-picker-view-column>
<wx-picker-view-column>
<div v-for="item in pickerView.days" :key="item" style="line-height: 50px">{{item}}日</div>
</wx-picker-view-column>
</wx-picker-view>
</div>
<div v-else-if="wxPrefix === 2">
<picker-view indicator-style="height: 50px;" style="width: 100%; height: 300px;" :value="pickerView.value" @change="onPickerViewChange">
<picker-view-column>
<div v-for="item in pickerView.years" :key="item" style="line-height: 50px">{{item}}年</div>
</picker-view-column>
<picker-view-column>
<div v-for="item in pickerView.months" :key="item" style="line-height: 50px">{{item}}月</div>
</picker-view-column>
<picker-view-column>
<div v-for="item in pickerView.days" :key="item" style="line-height: 50px">{{item}}日</div>
</picker-view-column>
</picker-view>
</div>
</template>
<template v-else-if="item === 'switch'">
<div v-if="!wxPrefix">
<wx-component :behavior="item" type="switch" :checked="true" @change="onSwitchChange"></wx-component>
<wx-component :behavior="item" type="checkbox" @change="onSwitchChange"></wx-component>
</div>
<div v-else-if="wxPrefix === 1">
<wx-switch type="switch" :checked="true" @change="onSwitchChange"></wx-switch>
<wx-switch type="checkbox" @change="onSwitchChange"></wx-switch>
</div>
<div v-else-if="wxPrefix === 2">
<switch type="switch" :checked="true" @change="onSwitchChange"></switch>
<switch type="checkbox" @change="onSwitchChange"></switch>
</div>
</template>
<template v-else-if="item === 'slider'">
<wx-component v-if="!wxPrefix" :behavior="item" min="50" max="200" :show-value="true" @change="onSliderChange"></wx-component>
<wx-slider v-else-if="wxPrefix === 1" min="50" max="200" :show-value="true" @change="onSliderChange"></wx-slider>
<slider v-else-if="wxPrefix === 2" min="50" max="200" :show-value="true" @change="onSliderChange"></slider>
</template>
<template v-else-if="item === 'map'">
<wx-component v-if="!wxPrefix" :behavior="item" :class="item" :longitude="113.324520" :latitude="23.099994" :scale="14" :controls="map.controls" :markers="map.markers" :polyline="map.polyline" :show-location="true" @markertap="onMapMarkerTap" @regionchange="onMapRegionChange" @controltap="onMapControlTap">
<Inner></Inner>
</wx-component>
<wx-map v-else-if="wxPrefix === 1" :class="item" :longitude="113.324520" :latitude="23.099994" :scale="14" :controls="map.controls" :markers="map.markers" :polyline="map.polyline" :show-location="true" @markertap="onMapMarkerTap" @regionchange="onMapRegionChange" @controltap="onMapControlTap">
<Inner></Inner>
</wx-map>
<map v-else-if="wxPrefix === 2" :class="item" :longitude="113.324520" :latitude="23.099994" :scale="14" :controls="map.controls" :markers="map.markers" :polyline="map.polyline" :show-location="true" @markertap="onMapMarkerTap" @regionchange="onMapRegionChange" @controltap="onMapControlTap">
<Inner></Inner>
</map>
</template>
<template v-else-if="item === 'cover-view'">
<wx-compoennt v-if="!wxPrefix" :behavior="item">测试 cover-view</wx-compoennt>
<wx-cover-view v-else-if="wxPrefix === 1">测试 cover-view</wx-cover-view>
<cover-view v-else-if="wxPrefix === 2">测试 cover-view</cover-view>
</template>
<template v-else-if="item === 'cover-image'">
<wx-component v-if="!wxPrefix" behavior="cover-view">
<wx-component :behavior="item" src="https://res.wx.qq.com/wxdoc/dist/assets/img/0.4cb08bb4.jpg"></wx-component>
</wx-component>
<wx-cover-view v-else-if="wxPrefix === 1">
<wx-cover-image src="https://res.wx.qq.com/wxdoc/dist/assets/img/0.4cb08bb4.jpg"></wx-cover-image>
</wx-cover-view>
<cover-view v-else-if="wxPrefix === 2">
<wx-cover-image src="https://res.wx.qq.com/wxdoc/dist/assets/img/0.4cb08bb4.jpg"></wx-cover-image>
</cover-view>
</template>
<template v-else-if="item === 'live-player'">
<wx-component v-if="!wxPrefix" :behavior="item" :class="item" mode="live" :autoplay="true" src="rtmp://live.hkstv.hk.lxdns.com/live/hks" @statechange="onLivePlayerStateChange">
<Inner></Inner>
</wx-component>
<wx-live-player v-else-if="wxPrefix === 1" :class="item" mode="live" :autoplay="true" src="rtmp://live.hkstv.hk.lxdns.com/live/hks" @statechange="onLivePlayerStateChange">
<Inner></Inner>
</wx-live-player>
<live-player v-else-if="wxPrefix === 2" :class="item" mode="live" :autoplay="true" src="rtmp://live.hkstv.hk.lxdns.com/live/hks" @statechange="onLivePlayerStateChange">
<Inner></Inner>
</live-player>
</template>
<template v-else-if="item === 'live-pusher'">
<wx-component v-if="!wxPrefix" :behavior="item" :class="item" mode="RTC" :autopush="true" url="https://domain/push_stream" @statechange="onLivePusherStateChange">
<Inner></Inner>
</wx-component>
<wx-live-pusher v-else-if="wxPrefix === 1" :class="item" mode="RTC" :autopush="true" url="https://domain/push_stream" @statechange="onLivePusherStateChange">
<Inner></Inner>
</wx-live-pusher>
<live-pusher v-else-if="wxPrefix === 2" :class="item" mode="RTC" :autopush="true" url="https://domain/push_stream" @statechange="onLivePusherStateChange">
<Inner></Inner>
</live-pusher>
</template>
<template v-else-if="item === 'editor'">
<wx-component v-if="!wxPrefix" :behavior="item" placeholder="请输入内容" :show-img-size="true" :show-img-toolbar="true" :show-img-resize="true" @statuschange="onEditorStatusChange" @ready="onEditorReady"></wx-component>
<wx-editor v-else-if="wxPrefix === 1" placeholder="请输入内容" :show-img-size="true" :show-img-toolbar="true" :show-img-resize="true" @statuschange="onEditorStatusChange" @ready="onEditorReady"></wx-editor>
<editor v-else-if="wxPrefix === 2" placeholder="请输入内容" :show-img-size="true" :show-img-toolbar="true" :show-img-resize="true" @statuschange="onEditorStatusChange" @ready="onEditorReady"></editor>
</template>
<template v-else-if="item === 'camera'">
<wx-component v-if="!wxPrefix" :behavior="item" :class="item">
<Inner></Inner>
</wx-component>
<wx-camera v-else-if="wxPrefix === 1" :class="item">
<Inner></Inner>
</wx-camera>
<camera v-else-if="wxPrefix === 2" :class="item">
<Inner></Inner>
</camera>
</template>
<template v-else-if="item === 'ad'">
<wx-component v-if="!wxPrefix" :behavior="item" :class="item" unit-id="123" @error="onAdError"></wx-component>
<wx-ad v-else-if="wxPrefix === 1" :class="item" unit-id="123" @error="onAdError"></wx-ad>
<ad v-else-if="wxPrefix === 2" :class="item" unit-id="123" @error="onAdError"></ad>
</template>
<template v-else-if="item === 'official-account'">
<wx-component v-if="!wxPrefix" :behavior="item" :class="item" @error="onOfficialAccountError"></wx-component>
<wx-official-account v-else-if="wxPrefix === 1" :class="item" @error="onOfficialAccountError"></wx-official-account>
<official-account v-else-if="wxPrefix === 2" :class="item" @error="onOfficialAccountError"></official-account>
</template>
<template v-else-if="item === 'web-view'">
<wx-component v-if="!wxPrefix" :behavior="item" :class="item" src="https://www.qq.com/"></wx-component>
<wx-web-view v-else-if="wxPrefix === 1" :class="item" src="https://www.qq.com/"></wx-web-view>
<web-view v-else-if="wxPrefix === 2" :class="item" src="https://www.qq.com/"></web-view>
</template>
<template v-else-if="item === 'scroll-view'">
<div>
<wx-component ref="scroll-view" v-if="!wxPrefix" :behavior="item" :class="item + '-y'" :scroll-into-view="'y1' + scrollView.yDest" :scroll-y="true" :scroll-with-animation="true" @scroll="onScrollViewScroll"><Inner2 type="y1"/></wx-component>
<wx-scroll-view ref="scroll-view" v-else-if="wxPrefix === 1" :class="item + '-y'" :scroll-into-view="'y2' + scrollView.yDest" :scroll-y="true" :scroll-with-animation="true" @scroll="onScrollViewScroll"><Inner2 type="y2"/></wx-scroll-view>
<scroll-view ref="scroll-view" v-else-if="wxPrefix === 2" :class="item + '-y'" :scroll-into-view="'y3' + scrollView.yDest" :scroll-y="true" :scroll-with-animation="true" @scroll="onScrollViewScroll"><Inner2 type="y3"/></scroll-view>
<div class="scroll-view-btn" @click="onClickScrollViewYBtn">滚动到第三个滑块</div>
</div>
<div>
<wx-component ref="scroll-view" v-if="!wxPrefix" :behavior="item" :class="item + '-x'" :scroll-into-view="'x1' + scrollView.xDest" :scroll-x="true" :scroll-with-animation="true" @scroll="onScrollViewScroll"><Inner2 type="x1"/></wx-component>
<wx-scroll-view ref="scroll-view" v-else-if="wxPrefix === 1" :class="item + '-x'" :scroll-into-view="'x2' + scrollView.xDest" :scroll-x="true" :scroll-with-animation="true" @scroll="onScrollViewScroll"><Inner2 type="x2"/></wx-scroll-view>
<scroll-view ref="scroll-view" v-else-if="wxPrefix === 2" :class="item + '-x'" :scroll-into-view="'x3' + scrollView.xDest" :scroll-x="true" :scroll-with-animation="true" @scroll="onScrollViewScroll"><Inner2 type="x3"/></scroll-view>
<div class="scroll-view-btn" @click="onClickScrollViewXBtn">滚动到第二个滑块</div>
</div>
</template>
<!-- 不支持标签 -->
<template v-else-if="item === 'xxxx'" >
<wx-component v-if="!wxPrefix" :behavior="item"></wx-component>
<wx-xxxx v-else-if="wxPrefix === 1"></wx-xxxx>
</template>
<iframe v-else-if="item === 'iframe'"></iframe>
<div v-else-if="item === 'intersection'">
<div>{{intersection.appear ? '小球出现' : '小球消失'}}</div>
<wx-scroll-view class="intersection-scroll-view" :scroll-y="true">
<div class="intersection-scroll-area" :style="intersection.appear ? 'background: #ccc' : ''">
<div class="intersection-ball"></div>
</div>
</wx-scroll-view>
</div>
</wx-view>
</div>
</div>
</template>
<script>
import Inner from './Inner.vue'
import Inner2 from './Inner2.vue'
export default {
name: 'Component',
components: {
Inner,
Inner2,
},
props: ['wxPrefix'],
data() {
const date = new Date()
const years = []
const months = []
const days = []
for (let i = 1990; i <= date.getFullYear(); i++) {
years.push(i)
}
for (let i = 1; i <= 12; i++) {
months.push(i)
}
for (let i = 1; i <= 31; i++) {
days.push(i)
}
return {
list: [
'normal',
'event',
'img',
'input',
'textarea',
'label',
'video',
'canvas',
'view',
'text',
'rich-text',
'swiper',
'movable',
'picker-view',
'form',
'button',
'icon',
'progress',
'open-data',
'navigator',
'picker',
'picker-view',
'switch',
'slider',
'image',
'map',
'cover-view',
'cover-image',
'live-player',
'live-pusher',
'camera',
'editor',
'ad',
'official-account',
'scroll-view',
// 'web-view',
'xxxx',
'iframe',
'intersection',
],
eventCount: 0,
transition: false,
icon: {
size: [20, 30, 40, 50, 60, 70],
color: ['red', 'orange', 'yellow', 'green', 'rgb(0,255,255)', 'blue', 'purple'],
type: ['success', 'success_no_circle', 'info', 'warn', 'waiting', 'cancel', 'download', 'search', 'clear']
},
input: {
inputText: '',
inputNumber: '',
inputRadio: 'radio2',
inputCheckbox: true,
},
map: {
markers: [{
iconPath: 'https://i.loli.net/2019/07/27/5d3c141367f2784840.jpg',
id: 0,
latitude: 23.099994,
longitude: 113.324520,
width: 50,
height: 50,
}],
polyline: [{
points: [{
longitude: 113.3245211,
latitude: 23.10229,
}, {
longitude: 113.324520,
latitude: 23.21229,
}],
color: '#FF0000DD',
width: 2,
dottedLine: true,
}],
controls: [{
id: 1,
iconPath: 'https://i.loli.net/2019/07/27/5d3c143497e6d38917.jpg',
position: {
left: 0,
top: 300 - 50,
width: 50,
height: 50,
},
clickable: true,
}],
},
scrollView: {
yDest: '',
xDest: '',
},
pickerView: {
years: years,
year: date.getFullYear(),
months: months,
month: 2,
days: days,
day: 2,
value: [9999, 1, 1],
},
movable: {
x: 10,
y: 10,
scaleValue: 1.2,
},
swiper: {
indicatorDots: true,
autoplay: false,
},
richText: {
nodes: [{
name: 'div',
attrs: {
class: 'rich-text-div',
style: 'line-height: 60px; color: red;',
},
children: [{
type: 'text',
text: 'Hello World!',
}],
}],
},
intersection: {
appear: false,
},
}
},
watch: {
'input.inputText'(value) {
console.log('input.inputText', value)
},
'input.inputNumber'(value) {
console.log('input.inputNumber', value)
},
'input.inputRadio'(value) {
console.log('input.inputRadio', value)
},
'input.inputCheckbox'(value) {
console.log('input.inputCheckbox', value)
},
},
created() {
window.onDealWithNotSupportDom = dom => {
dom.textContent = `标签 ${dom.tagName.toLowerCase()} 暂不支持`
}
},
mounted() {
wx.login({
success(res) {
console.log('login success', res)
}
})
const canvas = this.$refs.canvas[0]
canvas.$$prepare().then(domNode => {
const context = domNode.getContext('2d')
context.strokeStyle = '#00ff00'
context.lineWidth = 5
context.rect(0, 0, 200, 200)
context.stroke()
context.strokeStyle = '#ff0000'
context.lineWidth = 2
context.moveTo(160, 100)
context.arc(100, 100, 60, 0, 2 * Math.PI, true)
context.moveTo(140, 100)
context.arc(100, 100, 40, 0, Math.PI, false)
context.moveTo(85, 80)
context.arc(80, 80, 5, 0, 2 * Math.PI, true)
context.moveTo(125, 80)
context.arc(120, 80, 5, 0, 2 * Math.PI, true)
context.stroke()
}).catch(console.error)
canvas.$$getNodesRef().then(nodesRef => {
nodesRef.boundingClientRect(res => {
console.log('test $$getNodesRef', res)
}).exec()
})
this.observer = window.$$createIntersectionObserver()
this.observer
.relativeTo('.h5-body >>> .intersection-scroll-view')
.observe('.h5-body >>> .intersection-ball', res => {
console.log(res)
this.intersection.appear = res.intersectionRatio > 0
})
},
methods: {
onClick() {
this.eventCount++
console.log('click')
},
onParentTouchStart() {
console.log('parent touchstart')
},
onParentTouchEnd() {
console.log('parent touchend')
},
onParentClick() {
console.log('parent click')
},
onRootClick() {
console.log('root click')
},
startTranstion() {
this.transition = !this.transition
},
onTransitionEnd() {
console.log('transition end')
},
onAnimationStart() {
console.log('animation start')
},
onAnimationIteration() {
console.log('animation iteration')
},
onAnimationEnd() {
console.log('animation end')
},
onInput(evt) {
console.log('onInput', evt.target.value, evt)
},
onInputChange(evt) {
console.log('onInputChange', evt.target.value, evt)
},
onTextareaInput(evt) {
console.log('onTextareaInput', evt.target.value)
},
onImgLoad(evt) {
console.log('onImgLoad')
},
onPickerChange(evt) {
console.log('onPickerChange', evt.detail)
},
onMapMarkerTap(evt) {
console.log('onMapMarkerTap', evt.detail)
},
onMapRegionChange(evt) {
console.log('onMapRegionChange', evt.detail)
},
onMapControlTap(evt) {
console.log('onMapControlTap', evt.detail)
},
onLivePlayerStateChange(evt) {
console.log('onLivePlayerStateChange', evt.detail)
},
onLivePusherStateChange(evt) {
console.log('onLivePusherStateChange', evt.detail)
},
onSwitchChange(evt) {
console.log('onSwitchChange', evt.detail)
},
onLabelChange(evt) {
console.log('onLabelChange', evt.detail)
},
onSliderChange(evt) {
console.log('onSliderChange', evt.detail)
},
onEditorStatusChange(evt) {
console.log('onEditorStatusChange', evt.detail)
},
onEditorReady(evt) {
console.log('onEditorReady', evt.detail)
},
onAdError(evt) {
console.log('onAdError', evt.detail)
},
onScrollViewScroll(evt) {
console.log('onScrollViewScroll', evt.detail)
},
onClickScrollViewYBtn() {
const domNodes = this.$refs['scroll-view'] || []
if (domNodes[0]) {
const wxPrefix = this.wxPrefix
const prefix = wxPrefix === 1 ? 'y2' : wxPrefix === 2 ? 'y3' : 'y1'
domNodes[0].setAttribute('scroll-into-view', prefix + 'block3')
}
this.scrollView.yDest = 'block3'
},
onClickScrollViewXBtn() {
const domNodes = this.$refs['scroll-view'] || []
if (domNodes[1]) {
const wxPrefix = this.wxPrefix
const prefix = wxPrefix === 1 ? 'x2' : wxPrefix === 2 ? 'x3' : 'x1'
domNodes[1].setAttribute('scroll-into-view', prefix + 'block2')
}
this.scrollView.xDest = 'block2'
},
onOfficialAccountError(evt) {
console.log('onOfficialAccountError', evt.detail)
},
onFormSubmit(evt) {
console.log('form submit', evt.$$from, evt.detail)
},
onFormReset(evt) {
console.log('form reset', evt.$$from)
},
onSwiperChange(evt) {
console.log('onSwiperChange', evt.detail)
},
onPickerViewChange(evt) {
this.pickerView.year = this.pickerView.years[evt.detail.value[0]]
this.pickerView.month = this.pickerView.months[evt.detail.value[1]]
this.pickerView.day = this.pickerView.days[evt.detail.value[2]]
this.pickerView.value = evt.detail.value
console.log('onPickerViewChange', evt.detail)
},
onMovableChange(evt) {
console.log('onMovableChange', evt.detail)
},
onMovableScale(evt) {
console.log('onMovableScale', evt.detail)
},
onGetPhoneNumber(evt) {
console.log('onGetPhoneNumber', evt)
},
onClickMovableMove() {
const domNodes = this.$refs['movable-view'] || []
if (domNodes[0]) {
domNodes[0].setAttribute('x', 30)
domNodes[0].setAttribute('y', 30)
}
this.movable.x = this.movable.y = 30
},
onClickMovableScale() {
const domNodes = this.$refs['movable-view'] || []
if (domNodes[0]) {
domNodes[0].setAttribute('scale-value', 3)
}
this.movable.scaleValue = 3
},
}
}
</script>
<style>
.event-cnt {
position: relative;
height: 100px;
}
.event-t, .event-a {
left: 0;
top: 60px;
width: 50px;
height: 50px;
background-color: red;
position: absolute;
transition: all 0.5s;
}
.event-t-s {
left: 50px;
}
.event-t-e {
left: 0;
}
@keyframes event-aa {
0% {
left: 0;
}
50% {
left: 50px
}
100% {
left: 0;
}
}
.event-a {
animation: 1s ease 0s 8 event-aa;
}
.label {
padding: 0 20px;
height: 40px;
line-height: 40px;
background: rgba(7, 193, 96, 0.06);
}
textarea .wx-comp-textarea {
background-color: #ddd;
}
.inline {
display: inline;
}
.block {
display: block;
}
.margin-left-10 {
margin-left: 10px;
}
.comp {
padding: 10px 20px;
}
.video {
position: relative;
width: 300px;
height: 225px;
}
.map {
width: 300px;
height: 200px;
}
.live-player, .live-pusher, .camera {
width: 300px;
height: 225px;
}
.scroll-view-y {
width: 100%;
height: 125px;
}
.scroll-view-x {
width: 300px;
height: 125px;
}
.scroll-view-btn {
margin: 10px 20px;
text-align: center;
background: #07c160;
color: #fff;
line-height: 30px;
height: 30px;
font-size: 16px;
border-radius: 5px;
}
.ipt-group input {
display: inline-block;
}
button {
display: block;
width: 100%;
height: 30px;
line-height: 30px;
text-align: center;
font-size: 20px;
border: 1px solid #ddd;
}
.swiper {
display: block;
height: 150px;
}
.swiper-item-1, .swiper-item-2, .swiper-item-3 {
display: flex;
height: 150px;
align-items: center;
justify-content: center;
color: #fff;
font-size: 18px;
}
.swiper-item-1 {
background-color: #1AAD19;
}
.swiper-item-2 {
background-color: #2782D7;
}
.swiper-item-3 {
background-color: #F1F1F1;
color: #353535;
}
.movable {
height: 250px;
width: 250px;
background: #ccc;
overflow: hidden;
}
.movable-view {
display: flex;
align-items: center;
justify-content: center;
height: 50px;
width: 50px;
background: #1AAD19;
color: #fff;
}
.rich-text-div {
font-size: 30px;
}
.intersection-scroll-view {
height: 200px;
background: #fff;
border: 1px solid #ccc;
box-sizing: border-box;
}
.intersection-scroll-area {
padding-top: 200px;
height: 650px;
display: flex;
flex-direction: column;
align-items: center;
transition: .5s;
}
.intersection-ball {
width: 100px;
height: 100px;
background: #1AAD19;
border-radius: 50%;
}
</style>
2.4.3 Inner.vue
在 src/index 下创建 Inner.vue 文件，内容如下：
<template>
<div>
<div class="controls" @click="onVideoControlsClick">
<div>
img1:
<img class="video-img" src="https://i.loli.net/2019/07/27/5d3c141367f2784840.jpg"/>
</div>
<div>
img2:
<img class="video-img" src="https://i.loli.net/2019/07/27/5d3c143497e6d38917.jpg"/>
</div>
<div>this is video</div>
</div>
<div class="btn-cnt">
<wx-component class="video-btn" behavior="button" open-type="share">分享</wx-component>
</div>
</div>
</template>
<script>
export default {
name: 'Inner',
methods: {
onVideoControlsClick(evt) {
console.log('onVideoControlsClick')
},
}
}
</script>
<style>
.controls {
display: flex;
width: 100%;
height: 60px;
background: #ddd;
align-items: center;
}
.controls .video-img {
width: 40px;
height: 40px;
}
.btn-cnt {
position: relative;
width: 100%;
}
.btn-cnt .video-btn {
margin: 10px auto;
width: 100px;
height: 30px;
color: #fff;
background: #07c160;
text-align: center;
line-height: 30px;
border-radius: 10px;
}
</style>
2.4.4 Inner2.vue
在 src/index 下创建 Inner2.vue 文件，内容如下：
<template>
<div :class="type[0] === 'x' ? 'inner2-x' : 'inner2-y'">
<div :id="type + 'block1'" class="block block1"></div>
<div :id="type + 'block2'" class="block block2"></div>
<div :id="type + 'block3'" class="block block3"></div>
<div :id="type + 'block4'" class="block block4"></div>
<div :id="type + 'block5'" class="block block5"></div>
</div>
</template>
<script>
export default {
name: 'Inner2',
props: ['type'],
}
</script>
<style>
.inner2-x {
display: flex;
}
.block {
width: 100%;
height: 50px;
}
.inner2-x .block {
flex: 0 0 125px;
width: 125px;
height: 125px;
}
.block1 {
background: #dff0d8;
}
.block2 {
background: #f5f5f5;
}
.block3 {
background: #d9edf7;
}
.block4 {
background: #fcf8e3;
}
.block5 {
background: #f2dede;
}
</style>

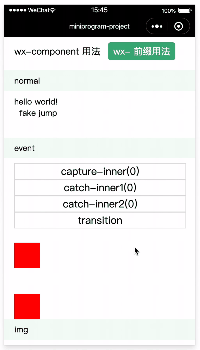

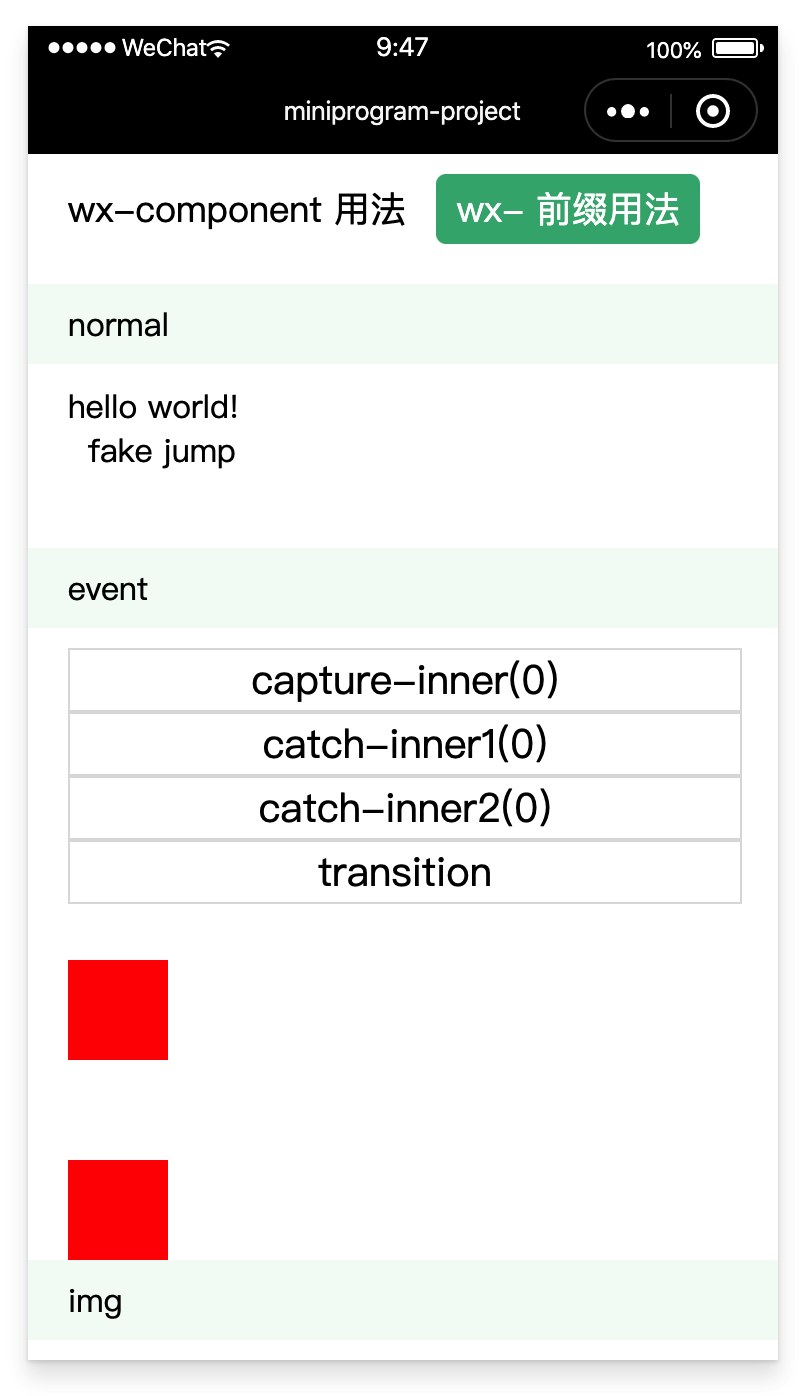

2.4.5 小程序端效果预览
npm run mp
